Brief description:In experiments of chemical reactions and sample treatments, some substances are so sensitive to water and oxygen that they can’t be processed in atmospheric environment
TEL:+86 25-86795086 58000618
Skype:+86 139 1299 5166
Mobile:+86 139 1299 5166
E-mail:admin@nj-keyscience.com
http://www.nj-chishun.com

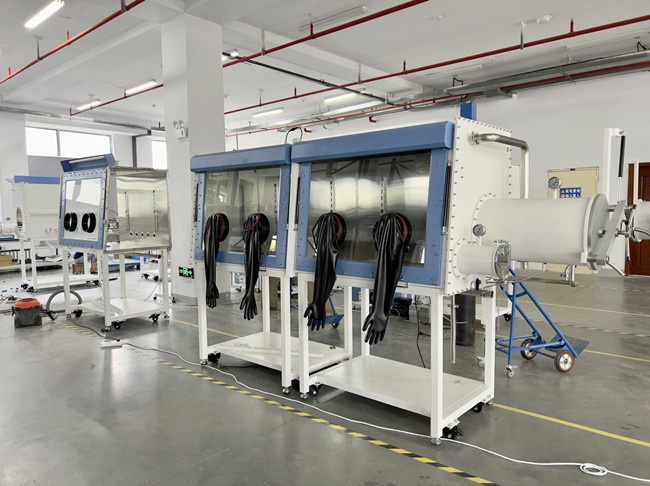

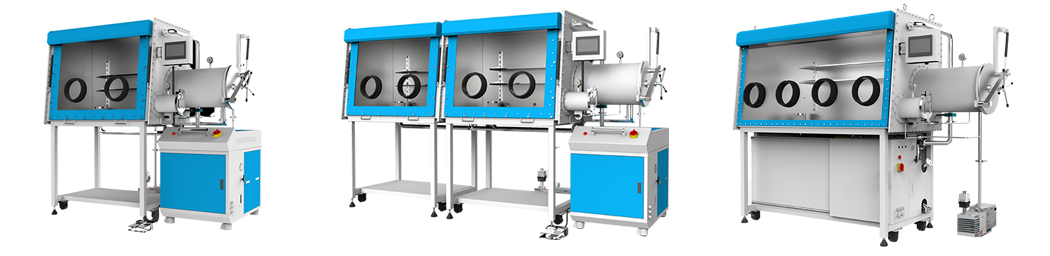

In experiments of chemical reactions and sample treatments, some substances are so sensitive to water and oxygen that they can’t be processed in atmospheric environment. Therefore, circular purification box are invented to enable the sensitive substances to react in inert gas environment without water and oxygen. The box is widely used in lithium ion batteries and materials, semiconductors, film preparation, nano materials, catalysts, super capacitors, special lamps, laser welding, brazing, titanium alloy welding, etc.
Technical parameters
1. Leakage rate〈0.001vol℅/h
2. Water content <1ppm Oxygen content <1ppm
3. Copper catalyst: 8kg Purification capacity: 120L deoxygenation
4. Molecular sieve: 16kgPurification capacity: 5kg dewatering
5. Regeneration of purification materials: >80%
Functions
1. Automatic gas cleaning inside cabinet and large chamber
2. Automatic reduction and regeneration of purification materials
3. Automatic control of pressure and pump
4. Automatic detection of leakage rate, water content and oxygen content

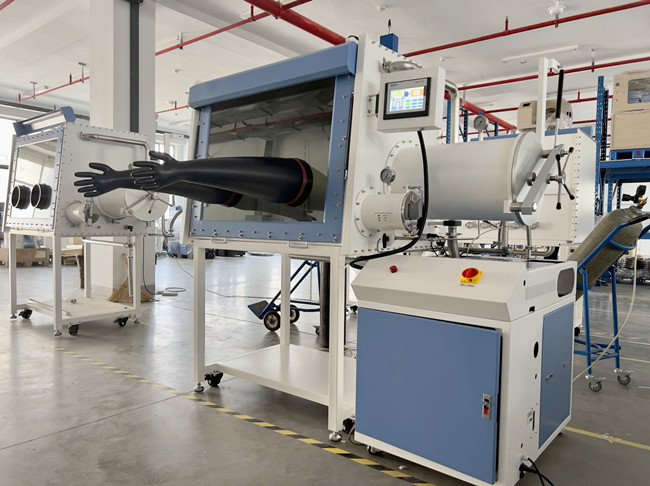

Constructions
1. Cabinet: SUS304,1220*750*900mm
2. Large chamber:SUS304, φ360mm*600mm
3. Small chamber:φ150mm*300mm
4. Front window: transparent toughened safety glass with 2 glove mouths
5. Cabinet lighting:LED light, installed in the lampshade
6. Interface: Flanges-KF40
7. Power: explosion proof power socket inside the cabinet
8. Storage board: L-900mm, W-200mm, Height adjustable
9. Consists of circular purification system:
a. High performance circulating purification fan tank
b. Purification tank for water and oxygen removal
c. Efficient filter
d. Organic solvent adsorber
10. Reduction and regeneration system
11. Pressure control system
12. Display: PLC touch screen
13. Mobile underframe box
14. Foot switch
15. Dew point analyzer
16. Oxygen analyzer
17. Vacuum pump
