BM04 Planetary Ball Mill

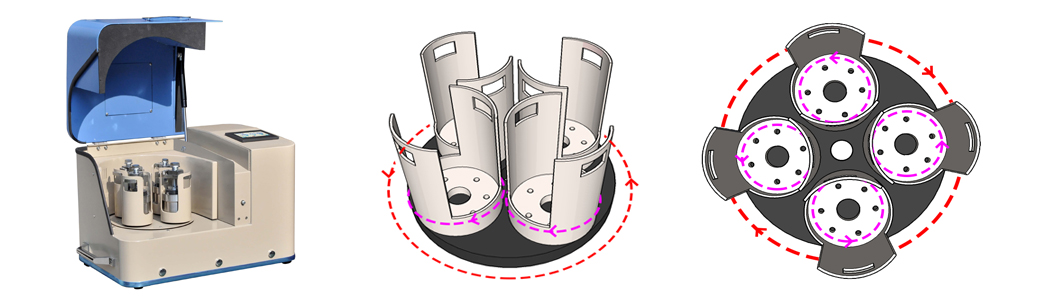

BM04 is a compact planetary ball mill designed to be operated on the table. 4 grinding stations with 100ml SS milling jars allow you to prepare up to 4 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals...) in an effective way. Such a tool has been extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc. The optional multi-cavity jars is an ideal solution whenever high throughput material grinding/mixing is needed.

Table-top compact design with 4 Grinding Stations.

Large touch screen controller allows easy programming for multi-steps speed-up/down milling/grinding, rotating direction, timing control and cycling

Efficient grinding benefits from the high centrifugal force and pulverization energy

Suitable for mechanical alloying, mixing, homogenizing, pulverizing

Minimum output granularity can be as small as 0.1um

Speed adjustable by tuning the frequency output to the AC motor (principle)

Revolution: 0~400rpm,Centrifugal acceleration:  14gmax.

Mixing tank self-rotation: 0~800 rpm, Centrifugal acceleration: 20gmax

Jar size:50ml、100ml

Total Centrifugal acceleration: 34gmax

Digital display and inputs for speed and time Up to 10 recipes can be stored Max. 5 segments speed control per recipe, up to 10 Cycles Rotation direction selectable, clockwise-anticlockwise

Wet Milling < 1um average

Dry milling < 20um average

Note: The output granularity is dependent on the material physical properties such as size, milling media and processing time. Minimum granularity can be as small as 0.1 um according to the customer’s feedback
