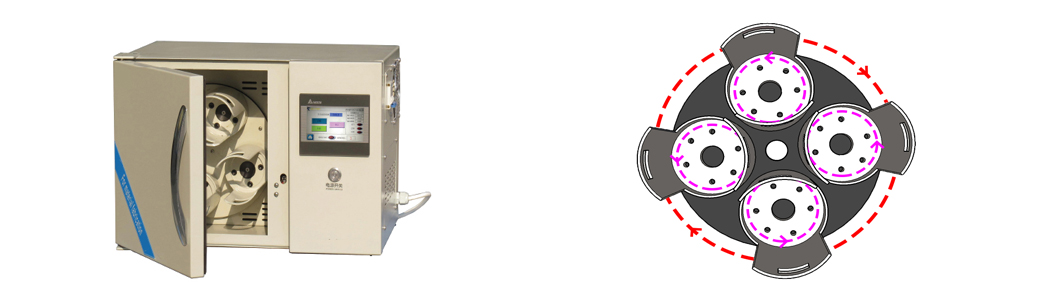

QM-WX04 Horizontal planetary ball mill

Horizontal planetary ball mill is a benchtop high throughput planetary ball mill designed to achieve the most efficient milling and fine grinding quality. 4 grinding stations with 4 cavity SS milling jars allow you prepare up to 4 different materials (alloys, ceramics, chemical products, polymer composites, metal oxides, minerals...) in an efficient way. This is an ideal solution whenever high throughput material grinding/mixing is needed.

●High throughput processing is feasible thanks to the 4-cavity SS jar. Up to 4 different materials can be processed at the same time with 4 jars placed in position. Please click the bottom left image to see details.

●Bench-top compact design with 4 Grinding Stations.

●Large touch screen controller allows easy programming for multi-steps speed-up/down milling/grinding, rotate direction, timing control and cycling.

●Efficient grinding benefits from the high centrifugal force and pulverization energy.

●Suitable for mechanical alloying, mixing, homogenizing, pulverizing.

●Minimum output granularity can be as small as 0.1 um.

●Speed adjustable by tuning the frequency output to the AC motor (principle)

●Revolution: 300rpm

●Mixing tank self-rotation: 600 rpm

●Crispy materials< 10mm (Others<3mm)

●Wet Milling < 1um average

●Dry milling < 20um average

●Digital display and inputs for speed and time

●Up to 10 recipes can be stored

●Max. 5 segments speed control per recipe, up to 10 Cycles

●Rotation direction selectable, clockwise-anticlockwise
