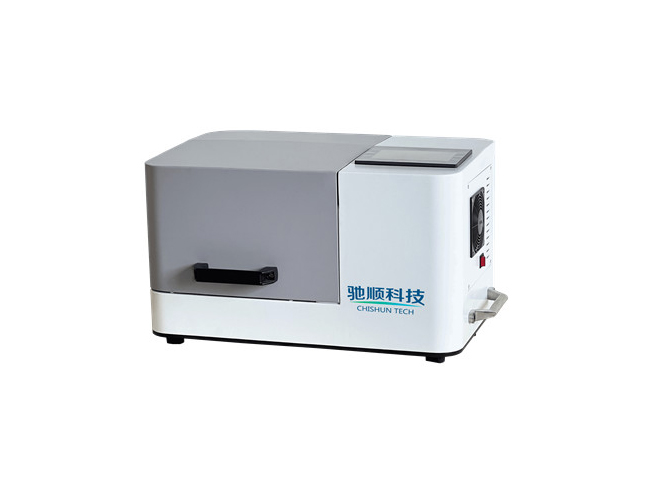

PULVERIZER 500 Planetary Ball Mill

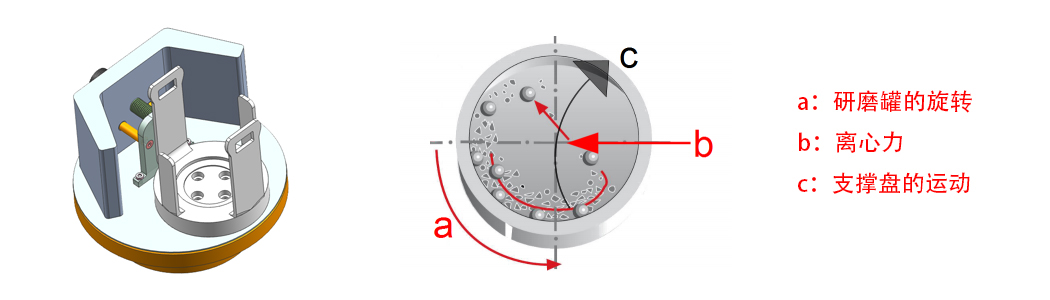

PULVERIZER 500 Planetary ball mill consists of a grinding platform and a clump weight on the same sun wheel. When the machine is powered on, bowl revolves around the sun wheel axis and rotates itself at the same time, which is called planetary motion. In high speed rotation, balls and samples in the bowl impact and clash each other intensively to achieve the crushing, grinding or emulsifying.

Specifications

Max. Feed size: 10mm

Grinding bowl sizes: 500ml*1, 250ml*1, 80ml*2(superimposed)

Final fineness: < 0.1um (Can achieve the analysis level fineness in 5 minutes to ensure working efficiency.)

Inert gas grinding: [optional]

Grinding method: dry grinding or wet grinding

Typical grinding time: 5min

Sun wheel speed: 100-650rpm

Bowl rotation speed: up to 1183rpm

Speed ratio: 1：-1.82

Effective sun wheel diameter:122mm

Safety device: There’re more than 4 pieces of thicker metal devices to ensure safety

Safety device for bowl: Double locks, rotary locking device and press locking device

G-Force（g=9.81m/s）: 29g

Counterweight: Horizontal rail counterweight and bow weight plates to keep balance during high-speed rotation

Control system: Programmable LCD screen supporting intermittent operation, timed running, alternate operation, data storage, abnormal alarm.

Air-exhausting Device: Design of double fans to reduce the inside temperature

Material of grinding bowls: Stainless steel, hardened steel, vacuum, tungsten carbide, zirconium oxide, agate, alumina, silicon nitride

Ball size：1mm、3mm、6mm、10mm、15mm、20mm、30mm

Net weight: N.W 68kg

Dimension：51*39*40cm

Features

1. The PULVERIZER 500 mainly applies in laboratory laser spectroscopy, chemical, pharmaceutical, biological, glass, ceramics, building materials, coal raw materials precision grinding, food industry laboratory sample pretreatment and material technology, geology, mineralogy and nuclear industry research fields.

2. Grinding time, cooling time and grinding frequency can be accurately set to seconds.

3. Specified bowls can be used to ac
